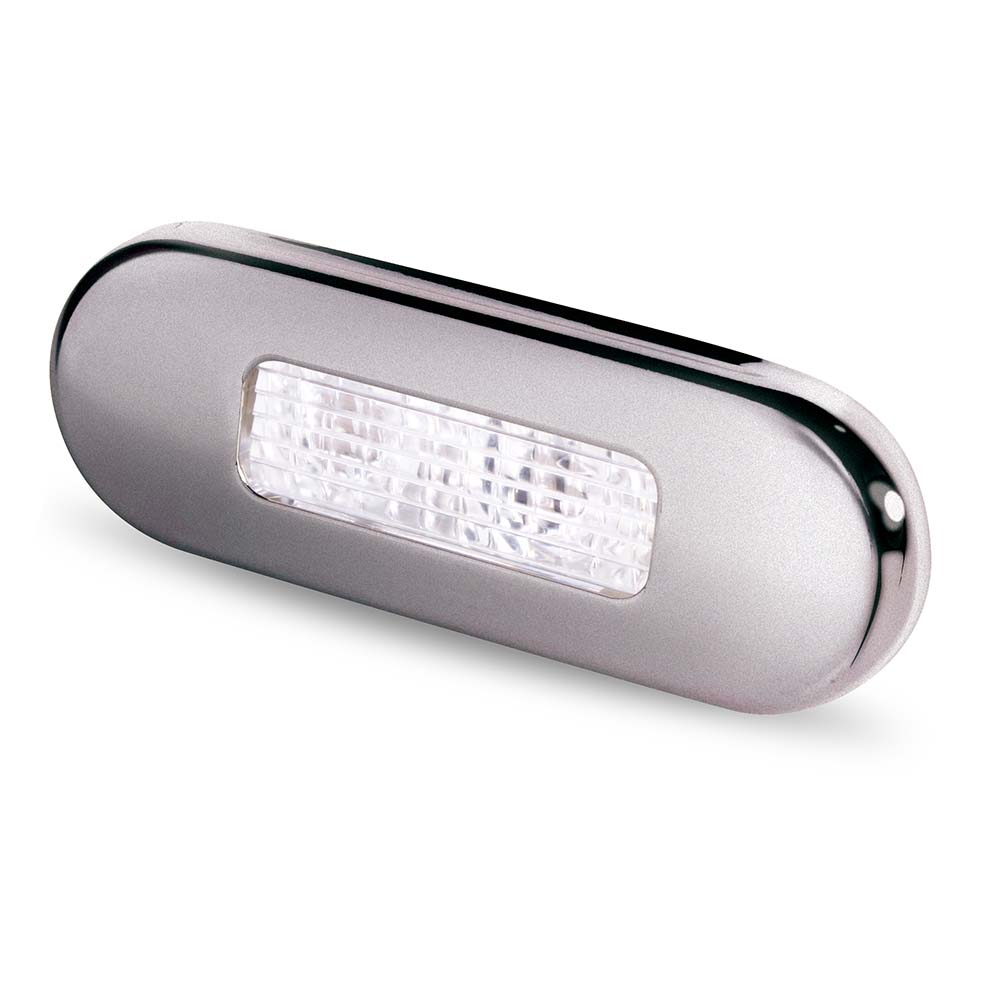

LED Oblong Step Lamp

Stylish, compact and power saving interior or exterior step lamps.

White LED, polished stainless steel rim, 10-33V.

Stylish, compact and power saving interior or exterior step lamps. Completely sealed and ultra durable, Hella marine LED step lamps are proven the worldwide. 9680 series lamps feature engineered optics to direct light downwards at 30 degrees safely illuminating deck and step tread surfaces without shining into the eyes.

MultivoltTM electronics ensure consistent illumination across a range of input voltages and lamp Protection for an ultra long service life.

Lens Material UV and impact resistant plastic
Rim Material 316 stainless steel
Cable 120mm of marine cable
Operating Voltage 10-33V DC
Power Consumption 0.5W ( < 0.04A@12V / < 0.02A@24V )
Degree of Protection IP 67 – Completely Sealed
Mounting Stainless steel screws included
Weight 35g (including cable)
Approvals CE

Description

Documents

DownloadDocument NameCategoriesTagsSizeTypehf:doc_categorieshf:doc_tags
Flush Mount Courtesy, Instructions, , , , , , , 260 KBpdfcourtesy-instructions-sheets instructions-sheets2xt-959-680-411 2xt-959-680-431 2xt-959-680-611 2xt-959-680-631 2xt-959-680-711 2xt-959-680-731 2xt-959-680-811 2xt-959-680-851
Flush Mount Oblong, Drawing, , , , , , , 31 KBpdfcourtesy-diagram-drawing diagram-drawing2xt-959-680-411 2xt-959-680-431 2xt-959-680-611 2xt-959-680-631 2xt-959-680-711 2xt-959-680-731 2xt-959-680-811 2xt-959-680-851
